MULTI Transfomers

Oil-immersed

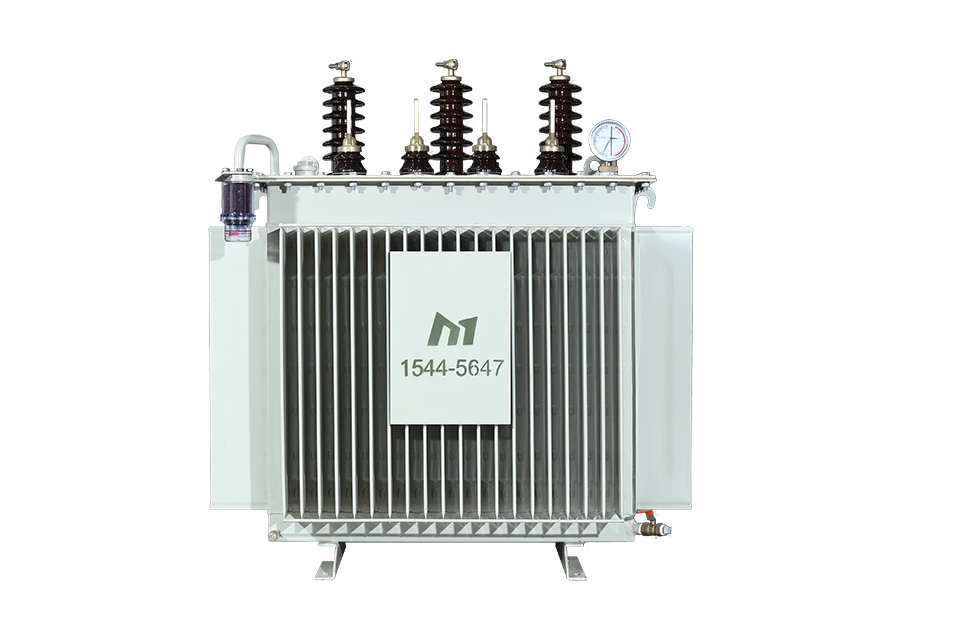

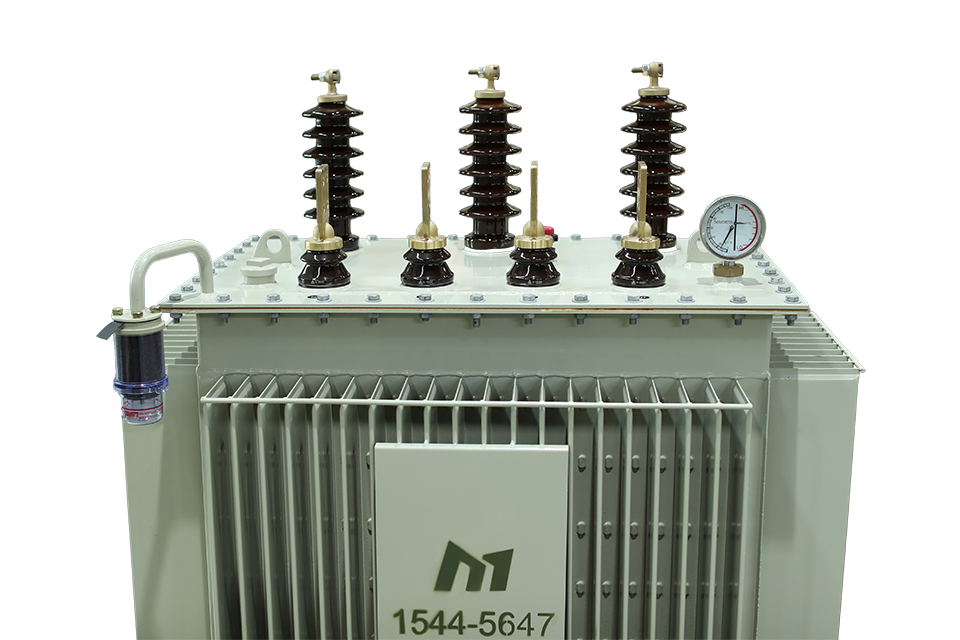

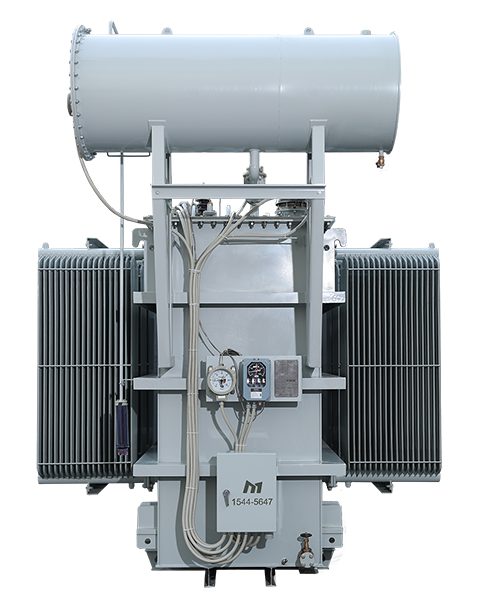

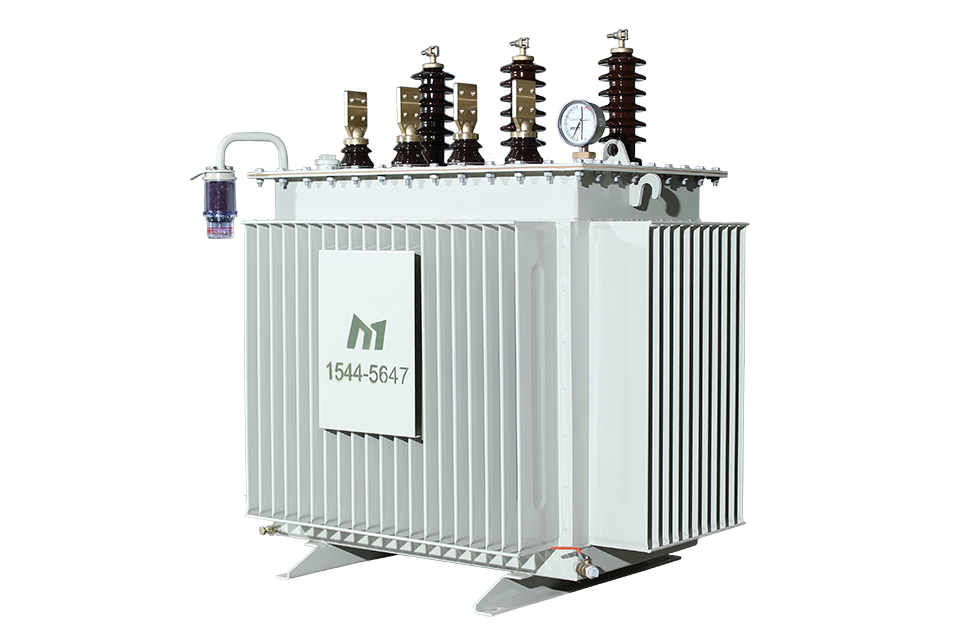

DESCRIPTION MULTI’s oil-immersed transformers are engineered for superior performance and reliability.
Committed to providing customized solutions, we deliver top-quality transformers that meet or exceed our customers’ specific requirements.
FEATURES
  • Various industrial and residential applications
  • Consistent and reliable electricity supply
  • Low noise and smaller in size
  • Various selections for optional accessories
  • High power density
  • Available in both SiFe and Amorphous Core
SPECIFICATIONS
FREQUENCY
50/60Hz
HV
Up to 72000V
LV
According to Customer's Requiremenet
IMPEDANCE
According to Customer's Requiremenet
RATING
10 ~ 10000kVA
Core Design
Core/Sheel Form
MAX, BIL
350kV BIL
Insulation
Mineral/Natural Ester
Standards
IEEE/IEC/NEMA
Tank Type
Mild Steel/Stainless Steel
Expertly managed with advanced technology and reliability.
Specialized in transformers, electrical works, and renewable energy.
