MULTI Transfomers

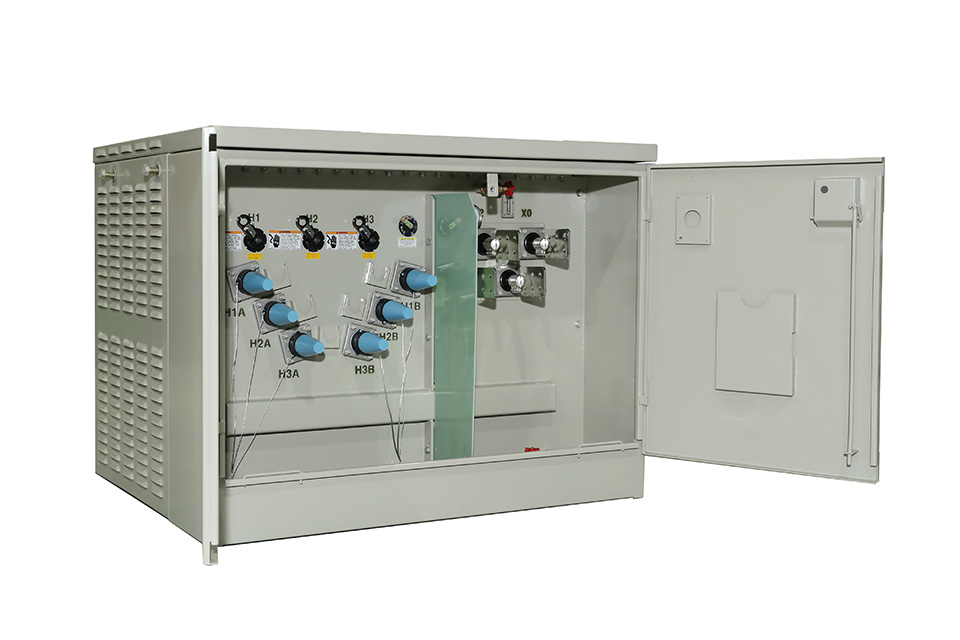

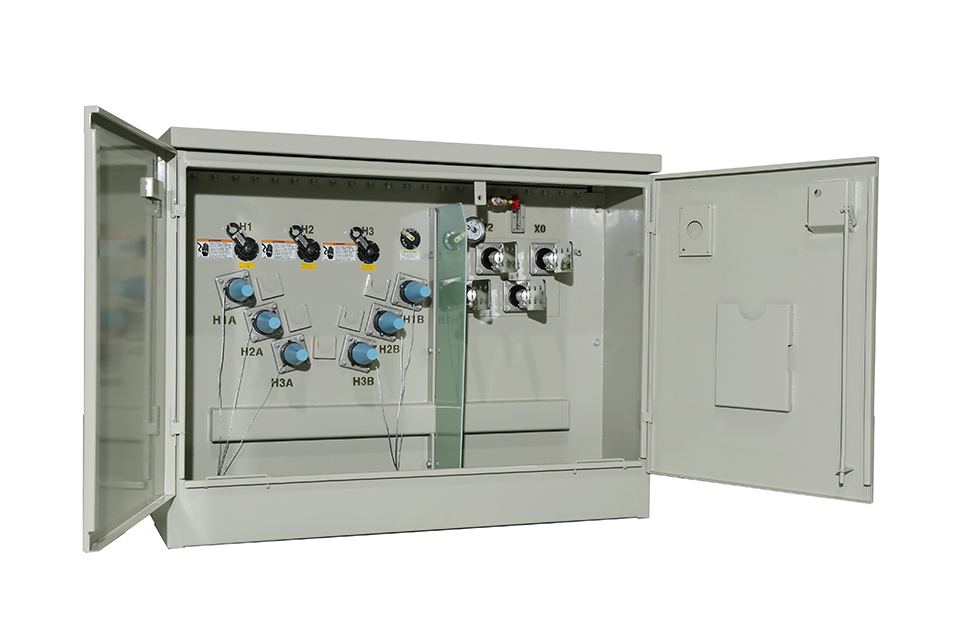

Padmount

DESCRIPTION MULTI’s Pad-Mounted Transformers are designed for seamless integration into urban and residential environments where space is limited, safety is critical, and aesthetics matter. Available in both single-phase (1PH) and three-phase (3PH) configurations, these transformers deliver dependable performance with compact installation footprints.
FEATURES
  • High reliability
  • Insulated with Mineral oil or Natural ester fluid
  • Reduced installation space
  • Various optional accessories are available
  • Available in both SiFe and Amorphous Core
SPECIFICATIONS
FREQUENCY
50/60Hz
HV
Up to 34,500GrdY / 19,920V
LV
600V and Below
IMPEDANCE
1.0 ~ 5.75% | 2.7 ~ 5.75%
RATING
10 ~ 250kVA | 45 ~ 500kVA
Core Design
Core / Shell Form
MAX. BIL
150kV BIL
Insulation
Mineral / Natural Ester
Standards
IEEE / IEC / NEMA
Tank Type
Mild Steel / Stainless Steel
Basic Components
  • HV/LV Bushings
  • Pressure Relief Device
  • Lifting Devices
  • Ground Connectors
  • Parking stand
Optional
  • HV Bushing Insert
  • LV Terminals
  • De-Energized Tap Changer
  • Oil Level Gauge
  • Oil Temperature Indicator
  • Fuse Assembly
  • Dual-voltage Switch
  • Load Breaker Switch
  • Tap Changer
