MULTI Transfomers

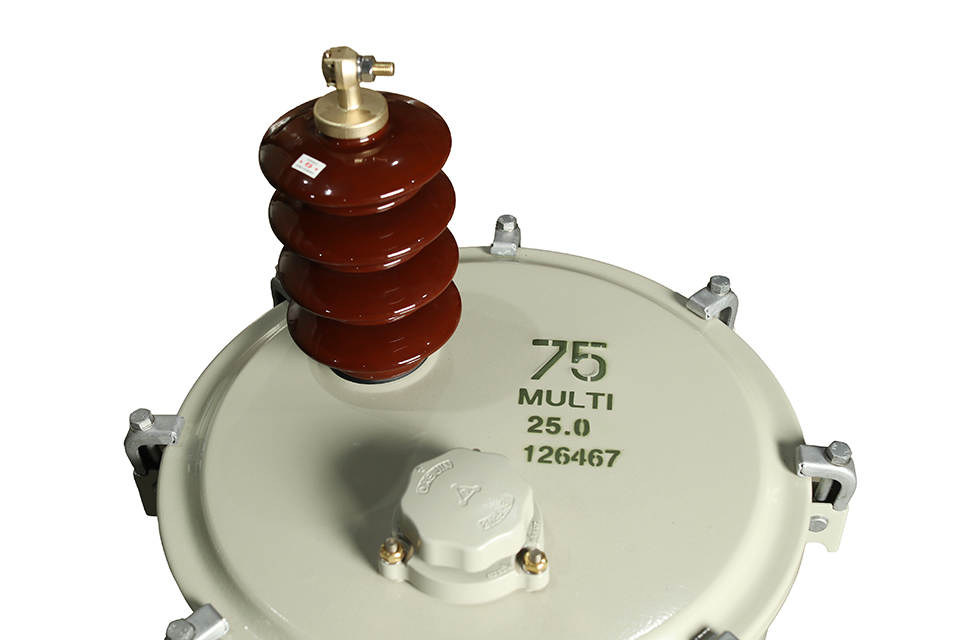

Polemount

DESCRIPTION MULTI's Polemount transformers are highly reliable and custom-manufactured to meet customer requirements.
Expertly designed and supported by engineers, these transformers fully comply with industry standards. A wide range of standards and optional accessories are available for selection.
FEATURES
  • High reliability
  • Advanced manufacturing and testing facility
  • Proven technology
  • Available in both SiFe and Amorphous Core
SPECIFICATIONS
FREQUENCY
50/60Hz
HV
Up to 34,500GrdY / 19,920V
LV
600V and Below
IMPEDANCE
1.0 – 5.75%
RATING
10 – 500kVA
Core Design
Core / Shell Form
MAX. BIL
150kV BIL
Insulation
Mineral / Natural Ester
Standards
IEEE / IEC / NEMA
Tank Type
Mild Steel / Stainless Steel
Basic Components
  • HV/LV Bushings
  • Pressure Relief Device
  • Lifting Devices
  • Ground Connectors
  • Support Lugs
Optional
  • Wildlife Guard
  • De-Energized Tap Changer
  • Surge Arrester
  • Dual-voltage Switch
  • LV Circuit Breaker
  • MagMex Interrupter
  • Tap Changer
