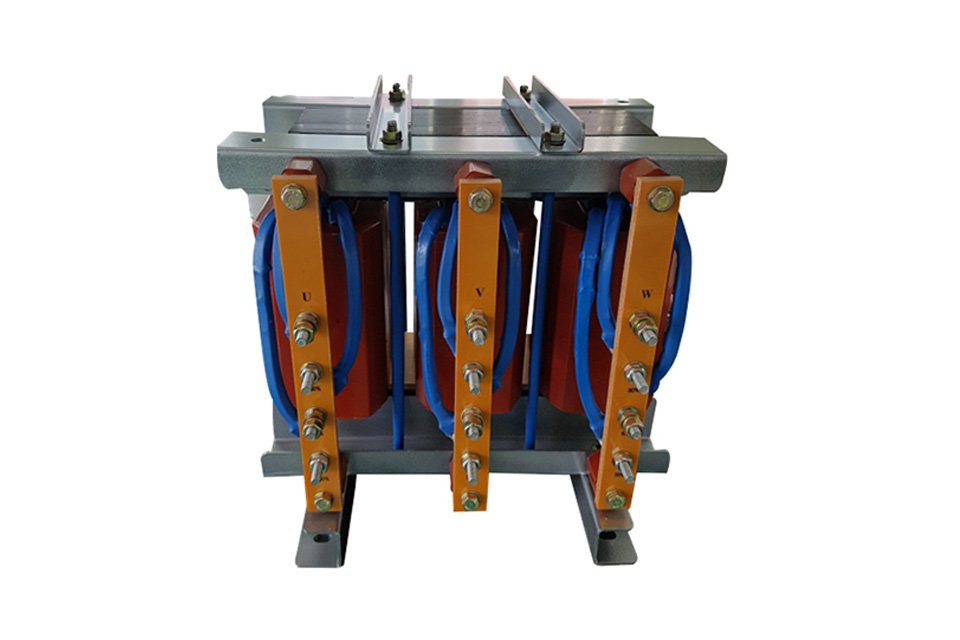

Reactor

DESCRIPTION MULTI’s AC/DC reactors are designed to minimize power losses caused by harmonics and filtering.
Engineered with advanced insulation systems and precision manufacturing, these reactors offer high efficiency and reliability for various industrial applications.
Ideal for use in harmonic filtering, motor drive systems, and DC link stabilization, MULTI reactors are available in various insulation classes and cooling methods to meet diverse operational demands.
FEATURES
  • High-efficiency design for harmonic filtering
  • Loss reduction in AC/DC drive systems
  • Suitable for both AC and DC applications
  • Compact and lightweight construction
  • Available in insulation classes B, F, and H
  • Air Natural (AN) / Air Forced (AF) cooling options
SPECIFICATIONS
Rated Capacity
2MVA
Rated Voltage
6.6kV
Frequency
50Hz / 60Hz
Phase
Three-phase
Insulation Class
B / F / H
Cooling Method
AN / AF
Ratings
Rated Capacity
2MVA
Rated Voltage
6.6kV
Frequency
50Hz / 60Hz
Phase
Three-phase
Insulation Class
B / F / H
Cooling Method
AN / AF
CHARACTERISTICS & DIMENSIONS (Three Phase 220V, 380V, 440V / 60Hz / 6% Impedance)
→ Please slide to the side to view the information.
Capacity η ε I/o Dimensions Total Weight
(kVAR) (%) (%) (%) (mm) (kg)
15 250 × 270 × 280 35
120 270 × 280 × 190 38
30 280 × 280 × 280 44
50 310 × 280 × 350 62
75 310 × 310 × 350 72
100 340 × 320 × 370 86
150 370 × 320 × 390 107
200 370 × 340 × 390 119
Efficiency (η), Reactance (ε), and Current Ratio (I/o) values are available upon request.
